Automatic Pre Press Equipment Flat Bed Die Cutting Machine With Stripping
ECOO-TD800S

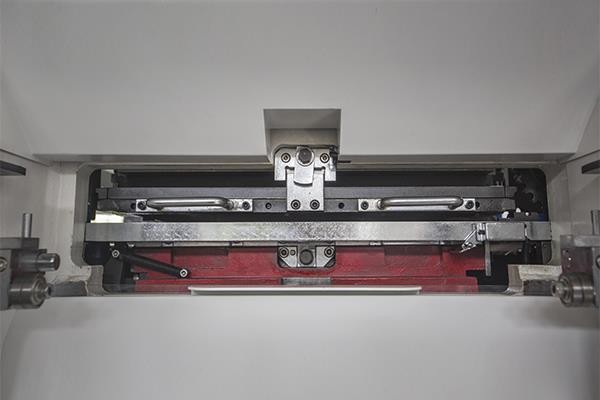

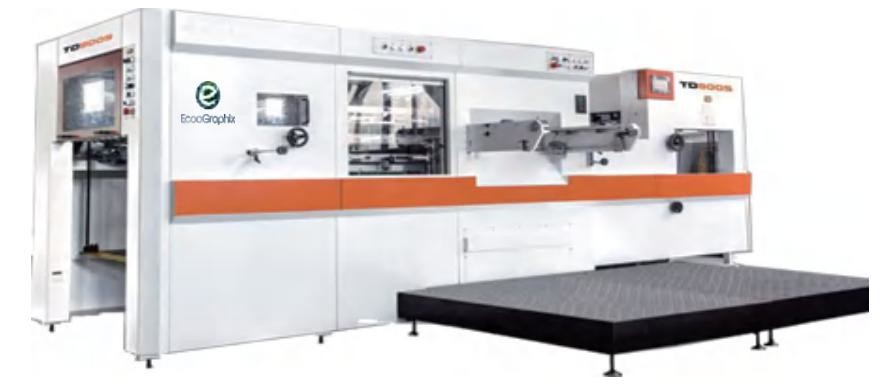

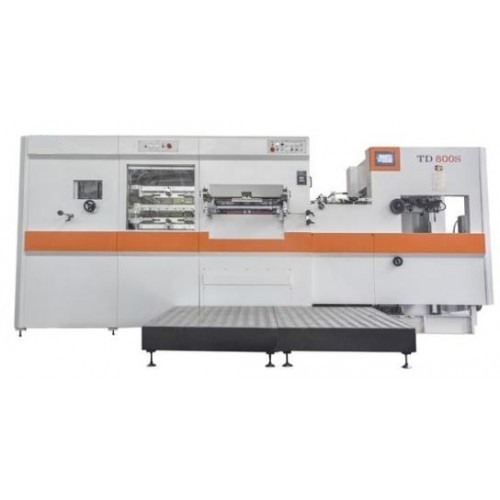

TD800S fully automatic die cutting machine has 7 sets of gripper bars with grippers made of lightweight and durable aluminum alloy with ultra hard coat and anodized finish ensure accurate and consistent paper registering.
1. Technical data:
| Model | ECOO-TD800S |
| Max. Sheet Size(mm) | 800x580 |
| Min. Sheet Size(mm) | 310x310 |
| Max. die cutting size(mm) | 790x570 |
| Min. gripper margin(mm) | 8 |
| Height cutting rules(mm) | 23.8 |
| Inside chase size(mm) | 940 x 610 |
| Stock range | Cardboard: 800-2000g/m²; B flute |
| Max. pressure(N) | 200T |
| Max. Die cutting speed | 7000s/h |
| Feeding pile height(mm) | 1300 |
| Delivery pile height(mm) | 1000 |
| Noise | ≤85dB(A) |
| Main motor(kw) | 7.5 |
| Total of power(kw) | 15 |
| Weight of machine(T) | 14.5 |
| Overall dimension(mm) | 4900x2000x2000 |
2. Advantages:
1) Transmission of main unit adopt imported A/C frequency converter control, startup and stop of the machine are controlled by means of imported air clutch.
2) Running of the whole machine is controlled by PLC. Interface touch-screen for monitoring machine running condition, trouble indications and their corresponding shooting ways. This is more operator-friendly.
3. Standard devices and components:
Feeding Unit
•Pile tray with handle allowing manual lateral correction of the pile during production
•Stream-wise feeding system with a highest speed of 120 sheets per minute
•2 suction cups each for lifting paper, 2 suction cups for moving paper
•Height and angle of suction heads are easily adjustable
•Electronic safety devices preventing feeder pile from over ascending
•Micro-adjustment is available for transversal positioning of pile table
•Precision double-sheet detector
•Easy changeover of pull and push side guides simply by turning a bolt without the need of removing and replacing complete side guide
•2 front guides with micro-adjustment and the side guide is adjustable by wheel handle
•Photo-electric detector with automatic stop system on feeding table in case of paper jam
•Separate drive controls of feeding unit & the main machine for easy make ready
•PLC and electronic cam for timing control
Diecutting Unit
•Siemens main motor controlled by Schneider inverter control
•Micro-adjustment of cutting force by worm gear driven by motor and controlled by touch screen
•The pressure accuracy can be up to 0.01mm
•Crank shaft made of 40Cr steel
•Machine frames made of Q235-A Steel, upper and lower platens made of QT60 ductile iron with resin coated sand with Meehanite Die Cast Iron Technology
•Cutting chase turn-over device
•Overload protection device with torque limiter for the highest safety of operator and equipment
•7 sets of gripper bars with grippers made of lightweight and durable aluminum alloy with ultra hard coat and anodized finish ensure accurate and consistent paper registering
•After long run test and delivered in pairs, main gripper, chain from Subaki, Japan
•High pressure index drive system for gripper bar positioning control
•Pneumatic lock-up and release of cutting chase
•Centerline system for quick job changeover
Stripping Unit
•3-action movement structure with upper, middle and lower stripping frame to facilitate die change
•Stripping pins or male/female die can be used for different stripping jobs
•Match with the centerline registration system in the diecutting section, the same system also apply to the stripping system to minimize changeover time. Accurate positioning can increase production efficiency
•The up/down movement of upper stripping frame is controlled by motor which makes adjustment easier
Delivery Unit
•Safety photo-electric devices preventing over-ascending and over-descending of delivery paper pile
•Adjustable depressor brush helps unloading paper from grippers and piling up paper
•High pile design up to 1020mm
•Automatic auxiliary belt table available for non-stop delivery
•Feeder movement and speed control can be adjusted in the delivery unit
Electric Parts, Operator Interface and Safety Detector
•The high speed Japanese industrial Omron PLC system
•Omron operator interface with touch screen
•Omron Electronic cam switch and encoder
•Electronic detectors, micro switched and photo-electric cells controlled by PLC on entire machine
Automatic Lubrication System
•Automatic oil pump and distribution system for entire machine with preset timer
•Lubrication oil distribution for gripper chains with individually controllable valve for each chain
Safety Devices and Quality Approval of Components
•All electronic and electrical parts are CE approved
•Overload protector for the protector and equipment
•Gripper chain clutch for the protection of gripper bars
•Emergency stop buttons on entire machine for quick and easy access
