4UP 24 Channel Offline Thermal Plate Making Machine Computer to Plate CTP
Model: ECOO T-400E
Product Description
EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor. By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
Specification
Model:
EcooSetter T-400E
Laser wavelength:
830nm
Plate type:
Thermal plate
Exposing Method:
External Drum
Imaging System:
24-channel
Throughput:
16 plates per hour, 800mmx660mm 2400dpi
Plate Size:
Max. 800mmx660mm Min. 400x300mm
Plate Thickness:
0.15mm to 0.3mm
Resolutions:
2,400dpi
Repeatability:
±5μm
(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface:
USB2.0
Weight:
800KG
Size:
1900×1200×1000mm(W×D×H)
Power Supply:
single-phase: 220AC+6%,-10%;
Power Consumption:
4KW
Environment:
recommended: 21-25ºC, max.18-26ºC, humidity:40-70%
| ECOO T-400 Series Thermal CTP Specifications | |||
| Model | T-400F | T-400S | T-400E |
| Exposing Mothod | External Drum | ||
Imaging System |
48-channel | 32-channel | 24-channel |
| Discrete 830nm laser diode | |||
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour |
| 800mm x 690mm ,2400dpi | |||
| Plate Sizes | Max.800mm x 660mm Min. 400mm x 300mm | ||
| Exposing Size | Max.800mm x 646mm Min. 260mm x 284mm | ||
| Media Type | Positive 830nm thermal CTP plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi | ||
| Repeatablity | ±5μm(Continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | ||
| Interface | USB 2.0 | ||
| Plate Loading | Semi automatic | ||
| Net Weight | 800kg | ||
| Machine Size (WxLxH)mm |
1900x1200x1000 | ||
| Power Supply | Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW | ||
| Environment | Recommended:21-25ºC, Max. 15-30ºC, Humidity: 40-70% | ||
Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

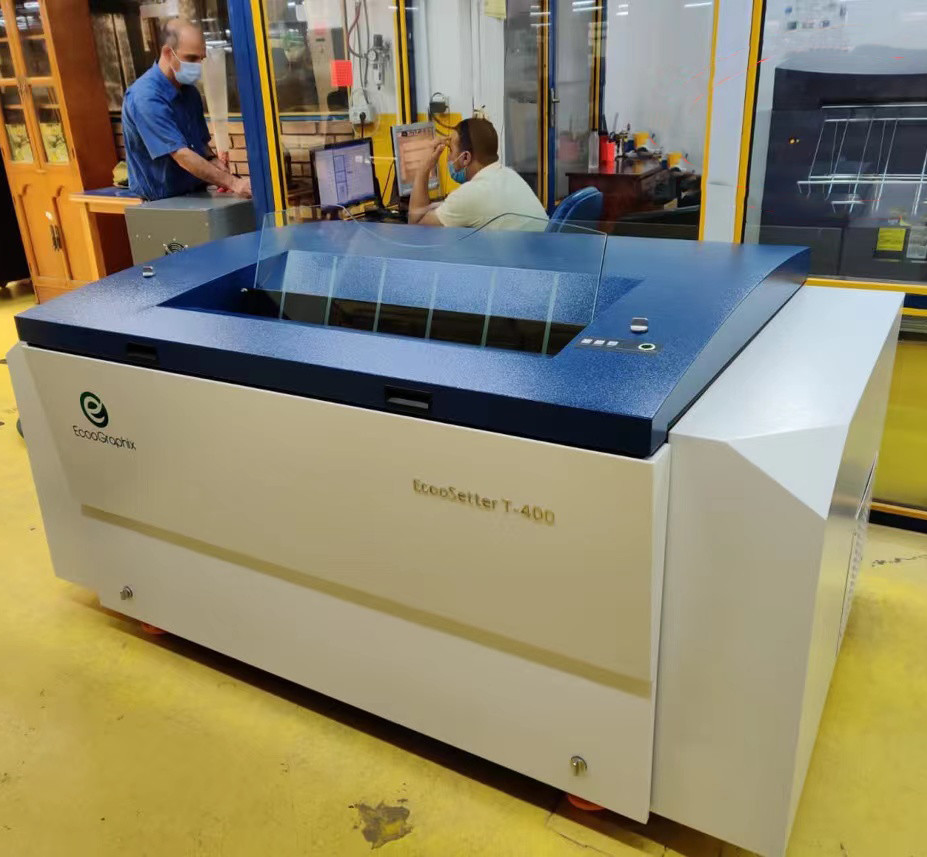

Installation World Wide
Certificates
FAQ
1. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. Lifetime warranty will be available in conjuction with our plate.
2. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
3. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
4. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
