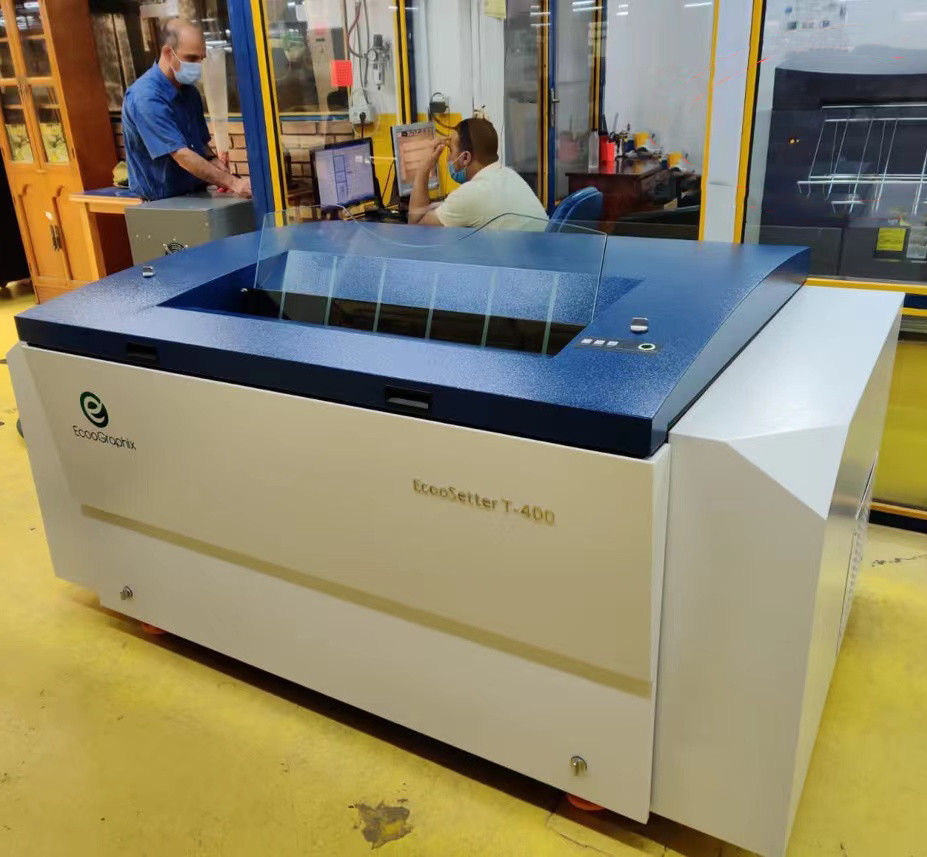

Ecoographix Computer To Plate Prepress Equipment Thermal CTP Platesetter
Model: ECOO T-400 F/S/E
Application:
EcooGraphix CTP Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to Printing CTP plate directly through the CTP machine and save the film and labor.
Specification
ECOO T-400 Series Thermal CTP Specifications
Model
T-400F, T-400S, T-400E
Exposing Method
External Drum
Imaging System
48-channel, 32-channel, 24-channel, Discrete 830nm laser diode
Throughput
28plates/hour, 22plates/hour, 16plates/hour, 800mm x 690mm, 2400dpi
Plate Sizes
Max. 800mm x 660mm, Min. 400mm x 300mm
Exposing Size
Max. 800mm x 646mm, Min. 260mm x 284mm
Media Type
Positive 830nm thermal CTP plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi
Repeatablity
±5μm (Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi automatic
Net Weight
800kg
Machine Size (WxLxH)mm
1900x1200x1000
Power Supply
Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| ECOO T-400 Series Thermal CTP Specifications | |||
| Model | T-400F | T-400S | T-400E |
| Exposing Mothod | External Drum | ||
Imaging System |
48-channel | 32-channel | 24-channel |
| Discrete 830nm laser diode | |||
| Throughput | 28plates/hour | 22plates/hour | 16plates/hour |
| 800mm x 690mm ,2400dpi | |||
| Plate Sizes | Max.800mm x 660mm Min. 400mm x 300mm | ||
| Exposing Size | Max.800mm x 646mm Min. 260mm x 284mm | ||
| Media Type | Positive 830nm thermal CTP plate | ||
| Plate Thickness | 0.15mm to 0.30mm | ||
| Resolution | 2400dpi | ||
| Repeatablity | ±5μm(Continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | ||
| Interface | USB 2.0 | ||
| Plate Loading | Semi automatic | ||
| Net Weight | 800kg | ||
| Machine Size (WxLxH)mm |
1900x1200x1000 | ||
| Power Supply | Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW | ||
| Environment | Recommended:21-25ºC, Max. 15-30ºC, Humidity: 40-70% | ||
Our Advantages
Dynamic Autofocus
With the third generation of dynamic autofocus technology, the accurate position measuring system of EcooGraphix equipments can directly detect such minute distance change as 0.1 microns. Driven by voice coil motor, they can also trace any change in focal length at an incredible acceleration of 30G in order to ensure the continuous accuracy of focal length. The combination of these unique features not only guarantees the deviation of density between any two spots is less than 0.3% in a full page of tint, but also avoids blue marks and blurs caused by tiny dusts on the drum surface.
Auto Constant Thermostatic Control of Laser Chassis
The temperature control system in laser thermostatic shielding chassis can automatically make two-way adjustment to the inside temperature with a minimum accuracy of positive or negative 0.1 degrees. Under optimum temperature conditions, output of laser is more stable and the life of laser is greatly lengthened.
Technology of DDS Frequency Multiplication and Drum Auto Balance
The technology of DDS frequency multiplication ensures phase position to jitter within 0.03125 pixels and exposed lines to be both vertical and horizontal. Auto balance system of drum takes no more than 5 seconds to adjust the drum balance block to a new position, instantaneously switching plates with different size.
Producing And Packging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

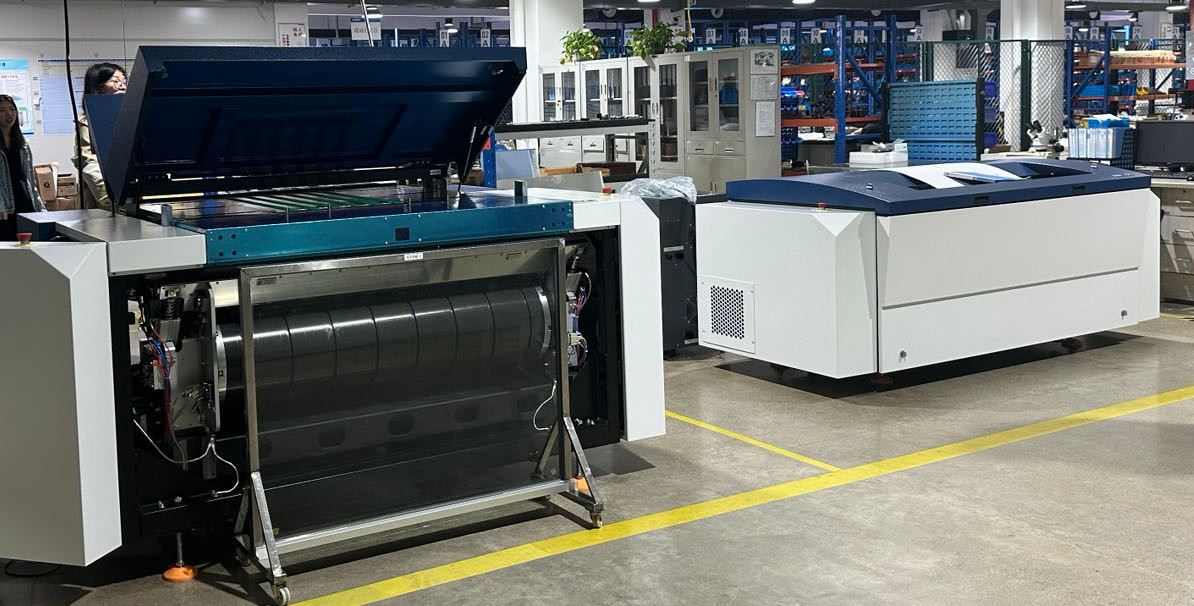

ProducingInstallation Worldwide
Certificates
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, Blankets, Postpress Packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. If machine user uses our plate at the same time, we offer lifelong warranty.
3. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
4. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
