High Sensitivity Positive CTCP Aluminium Offset Printing Plates
EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based ink. It is also compatible with an ordinary ink.
It is use for long run length high grade offset commercial and newspaper printing.
Characteristic
Features
- Positive writing CTCP (conventional) plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Ability to print both AM and FM screening
Advantages
- Resist UV-ink; Workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of platesetters, processors and solutions
Benefits
- Very Quick turn around time on press
- Robust coating and consistent reliablity
- Compatible with most developers
- Premium quality of dot reproduction and long run length
Specification
| Model | ECOO-CTCP-D |
| Plate Type |
No, preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing |
| Application | Newspaper printing, Commercial printing, and Package printing |
| Substrate | Electrochemically Grained and Anodized Aluminum |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1350 mm |
| Developer | Any positive plate developer or our own developer |
| Length of Run |
200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impression baked. |
| Plate setters Capability |
All the main brands violet CTP in market, laser power no less than 30 mw |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 50-65uj/cm² (based on plate setter and developing condition) |
| Developing time | 20±3 sec |
| Developing Temperature | 28±2 ℃ |
| Spectral Sensitivity | 405 nm |
| Resolution | 1-99% @ 200 LPI & 20 uFM |
| Shelf life | 12 months under recommended storage conditions |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold, heat. |
| Product highlight |
High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate |

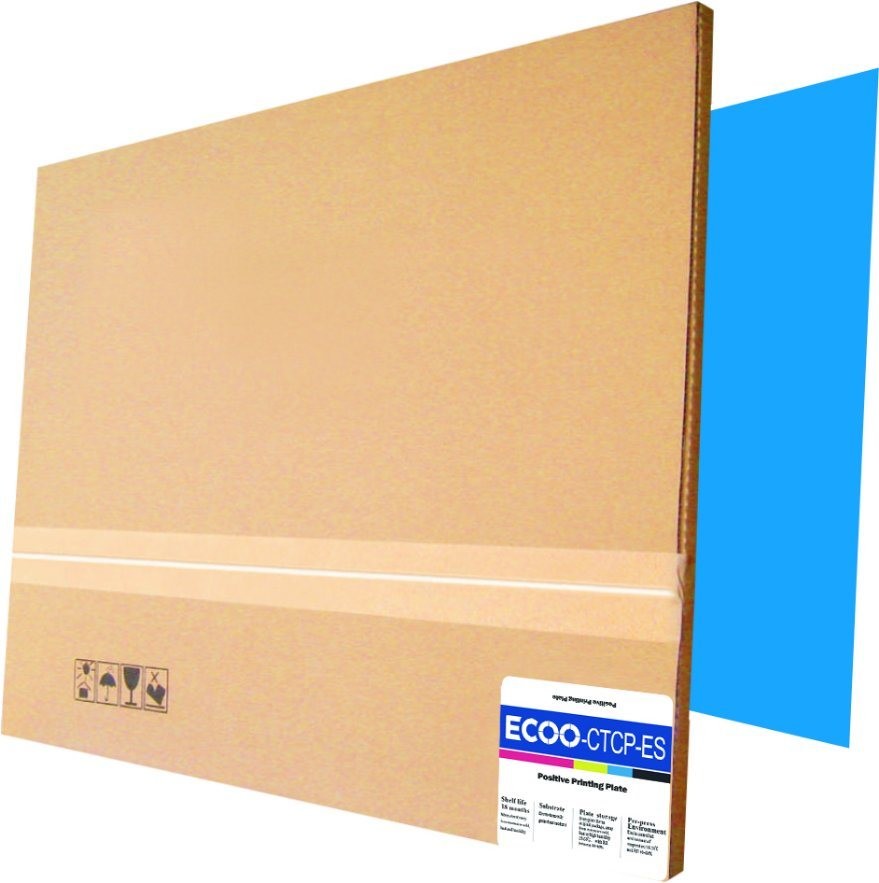

Producing and Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
