ECOO T-800 Series Automatic Plate Making Machine (online system)
Product Description
EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing.
It can output the images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.
Specification
Model: T-800F/S/EA
Imaging System: 64/48/32 channel
Output Speed: 28/22/16 pph;1030mm x 800mm / 2400dpi
Plate Size: Max.1163 x 940mm Min. 400mm x 300mm
Plate Thickness: 0.15mm to 0.30mm
Resolution: 2400dpi Weight: 1200KG
Machine Size: 2127×1610×1058mm (W×D×H)
| ECOO T-800A Series Thermal CTP Specifications | |||||
| Model | T-800FA | T-800SA | T-800EA | ||
| Imaging System | 64 channel | 48 channel | 32 channel | ||
| Output Speed | 28 pph | 22 pph | 16 pph | ||
| 1030mm x 800mm / 2400dpi | |||||
| Plate Size | Max.1163 x 940mm Min. 400mm x 300mm | ||||
| Plate Thickness | 0.15mm to 0.30mm | ||||
| Resolution | 2400dpi | ||||
| Weight | 1200KG | ||||
| Repeatability | ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) | ||||
| Machine Size (WxLxH)mm | 2127×1610×1058mm (W×D×H) | ||||
| Power Supply | Single phase:220AC +6%, -10%, Power Consumption: 4KW | ||||
| Environment | Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70% | ||||
Producing and Packing

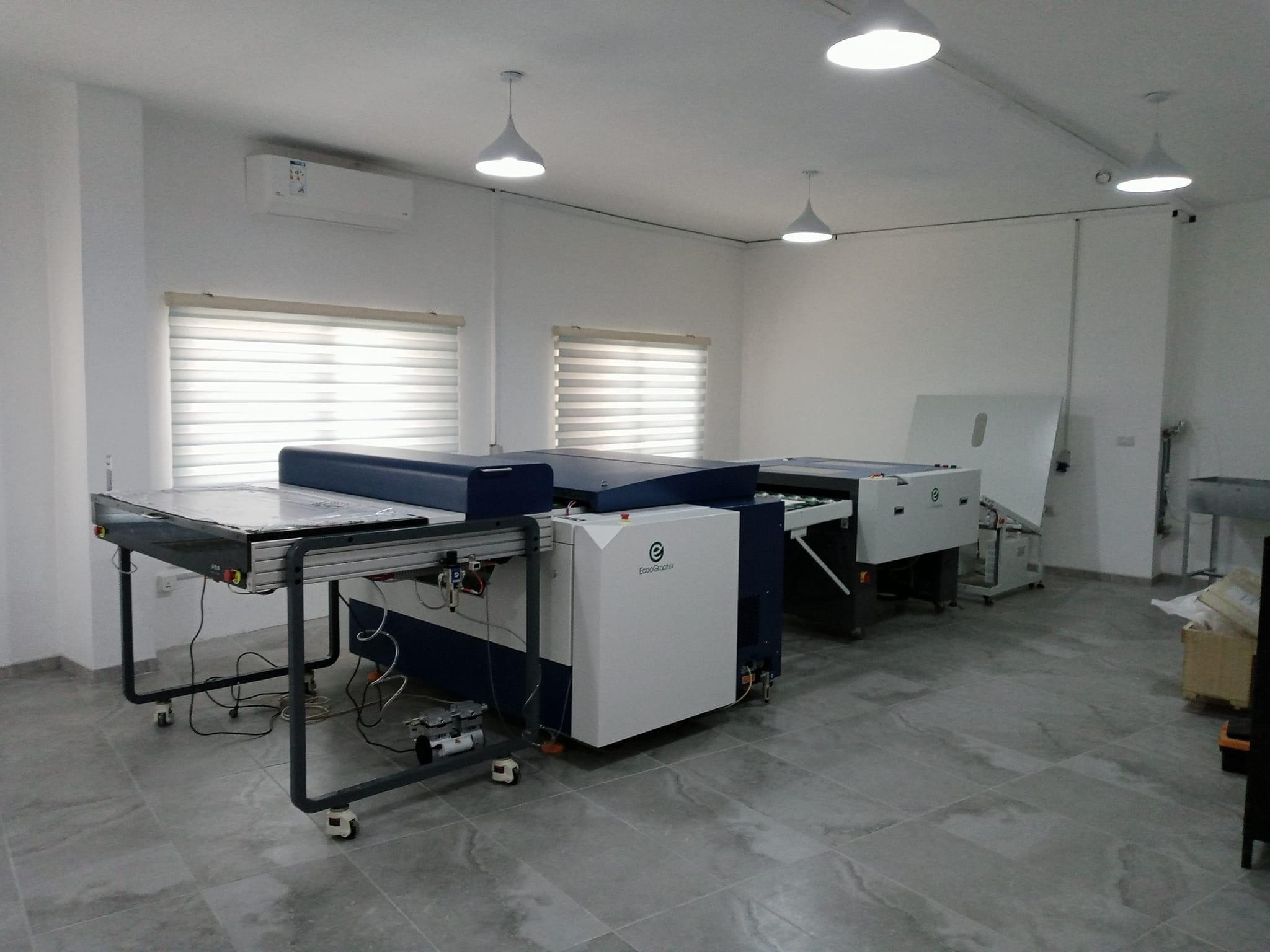

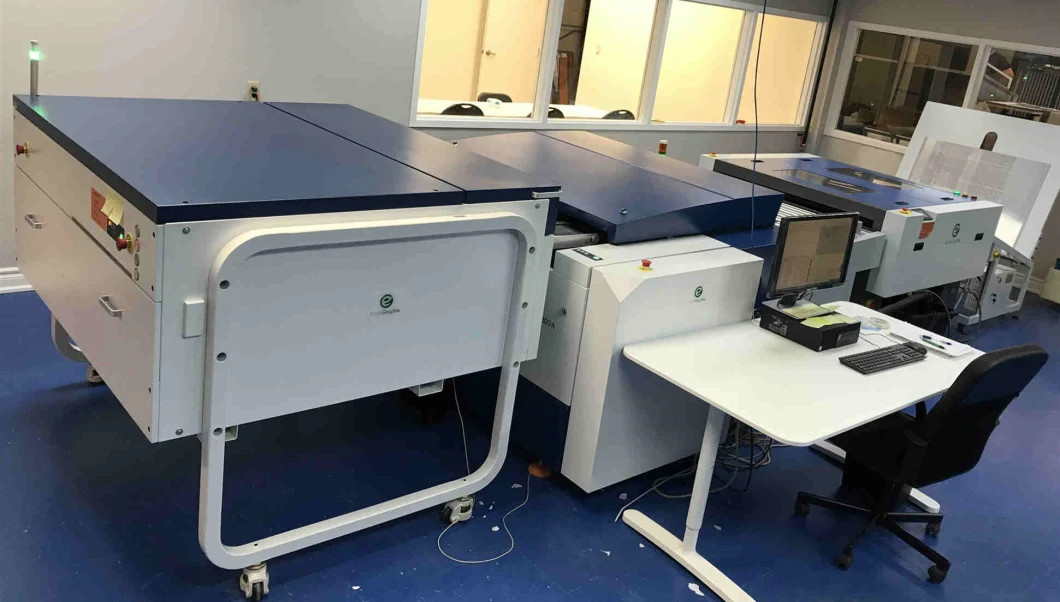

Installation Worldwide
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, Blankets, Postpress Packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. If machine user uses our plate at the same time, we offer lifelong warranty.
4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
