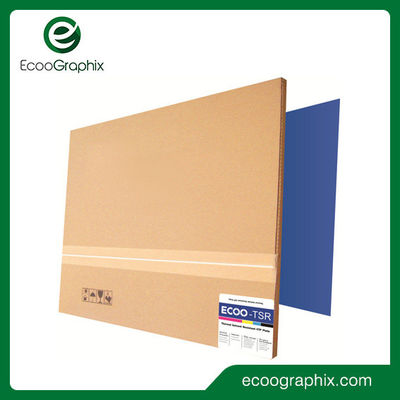

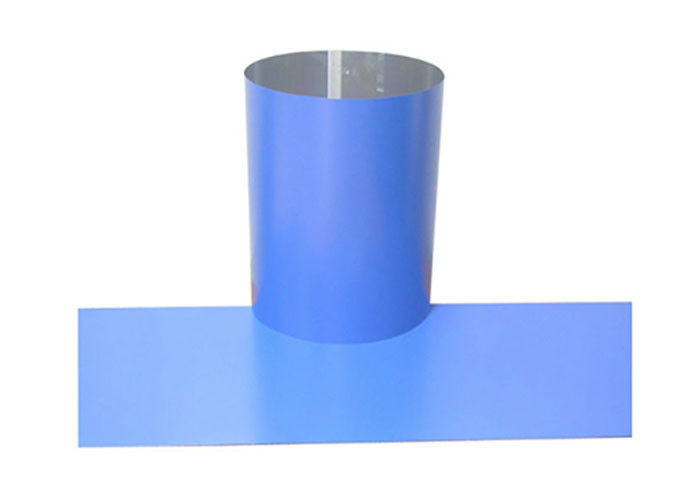

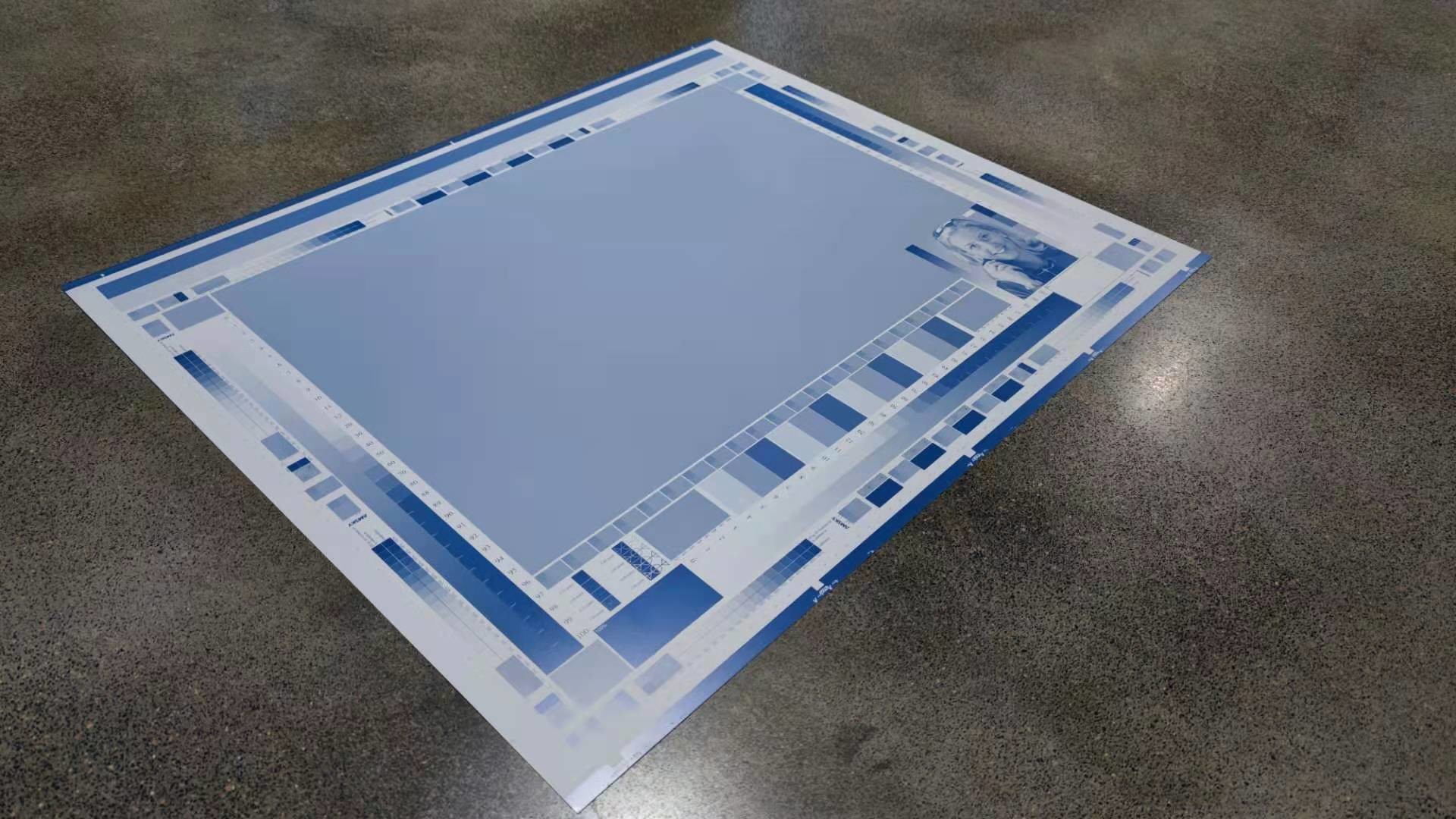

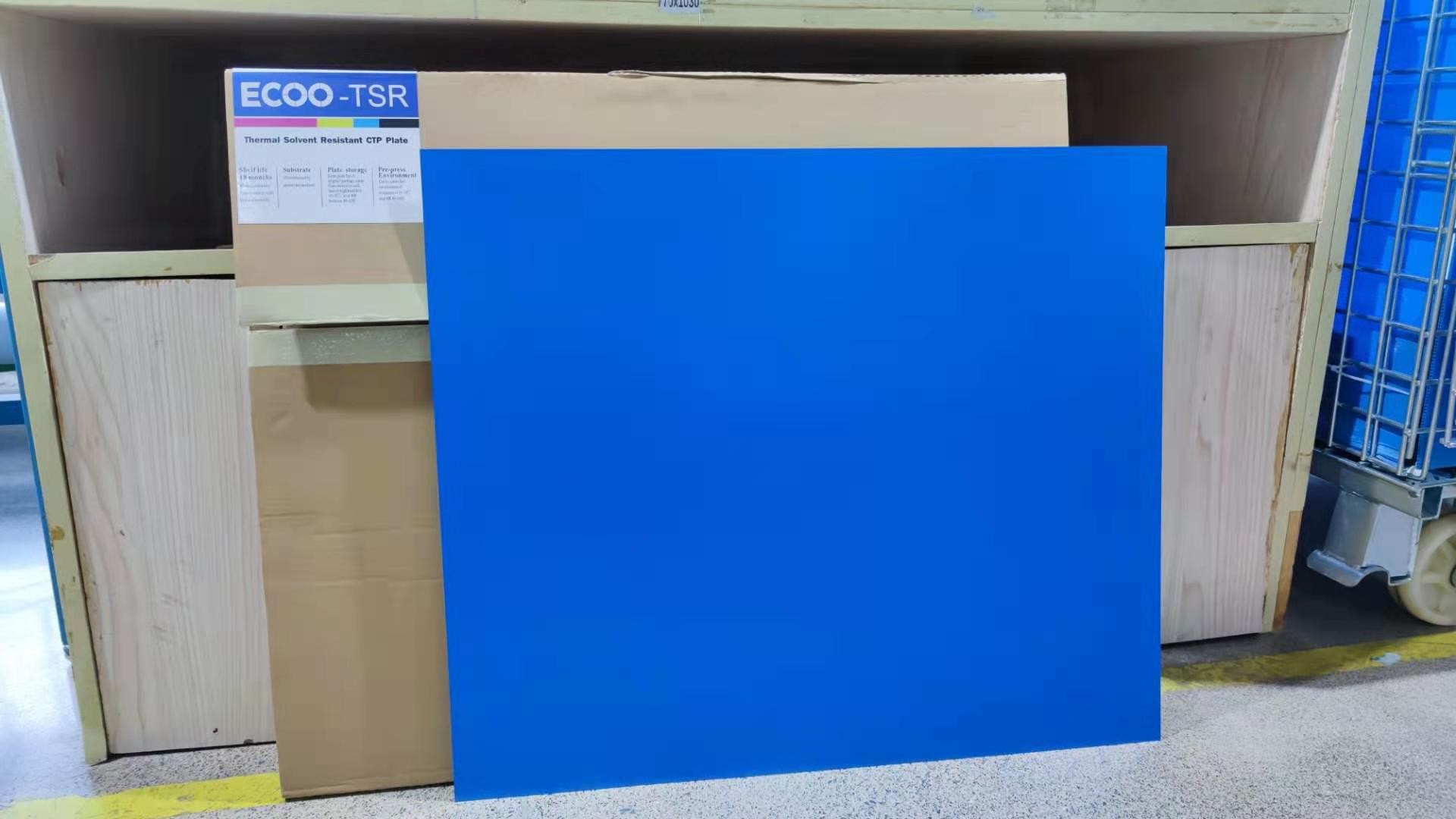

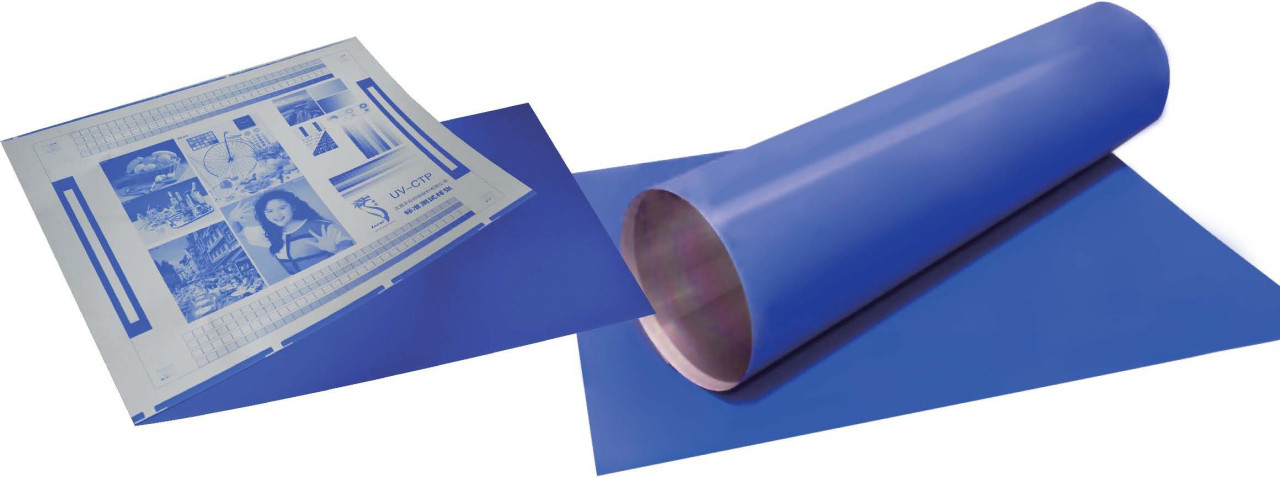

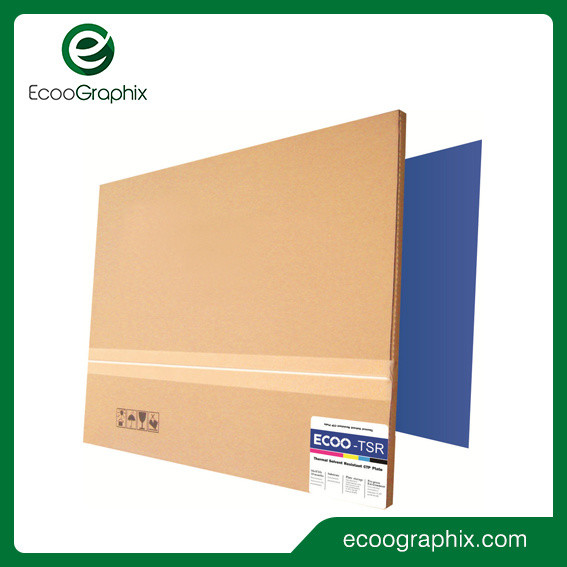

EcooGraphix ECOO-TSR Thermal Solvent Resistance CTP plate can be used for
long runs high grade offset commercial, packaging or newspaper printing.
It is compatible with ordinary ink and UV ink.
| Plate Model | ECOO-TSR |
| Plate Type | Positive Working Thermal CTP Plate(Double Layer) |
| Application | High grade offset commercial ,packaging or newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Plate Thickness | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1325 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Press Runs | Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS |
| CTP Plate Making Machine | Heidelberg : Top setter/Supra setter; Luscher : Xpose Screen : PT-R,Creo : Scitex ;EcooGraphix Thermal CTP Tseries |
| Plate setters | 120 - 150 mj/cm² |
| Exposure energy | 800-850 nm – Peaks 830nm |
| Spectral Sensitivity | 1-99% at 400 LPI or FM 10 micron stochastic |
| Resolution | Blue |
| Image color | Kodak Gold Star or EcooGraphix DV-T developer |
| Developer | 25°C +/- 3°C |
| Processing temperature | 25+/- 5 sec |
| Developing time | 0.80 – 1.20 m/min |
| Processing Speed | 0.80 – 1.20 m/min |
| Safelight | Daylight handling |
| Shelf Life | 12 months under recommended storage conditions |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity. |
More details
About US
EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.
FAQ
Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
