High Quality Positive Acting Single Layer CTCP Printing Plate
1. Characteristic
High quality aluminum and photosensitive coating.
Multi layer composite grain structure.
Precise half-tone dot reproduction.
High development tolerance level and convenient operation.
2. Specification
General Information
Plate Model
ECOO-CTCP-ES
Plate Type
Positive CTCP Plate(Single Layer)
Application
High quality commercial and newspaper printing
Substrate
Electro chemically grained and Anodized lithographic aluminum
Aluminum alloy
Standard 1050 Alloy
Gauge
0.15, 0.20, 0.25, 0.30, 0.40 (mm)
Maximum short grain width
Maximum width 1280 mm
Length of Run
Unbaked: 80,000 to 100,000 impressions;
Baked: Over 100,000 impressions
Exposing
Plate setters
Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine
Exposure energy
50 - 70 mj/cm²
Spectral Sensitivity
400 - 430 nm - UV Laser
Resolution
2 - 99% LPI 200
Photosensitive Wave Length
405nm
Coating
Light Blue
Developing
Processor
All the kind brands
Developer
Any CTCP plate developer or our own developer
Processing temperature
23°C +/- 2°C
Developing time
25 - 30 sec
Processing Speed
0.80 - 1.20 m/min
Storage and handling
Safelight
Handle under yellow safelight (UV free)
Shelf Life
12 months under recommended storage conditions
Packaging
Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling
Stored in a cool and dry environment, away from excessive cold, heat and humidity.
| General Information | |
| Plate model | ECOO-CTCP-ES |
| Plate type | Positive CTCP Plate(Single Layer) |
| Application | High quality commercial and newspaper printing |
| Substrate | Electro chemically grained and Anodized lithographic aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Length of Run | Unbaked: 80,000 to 100,000 impressions; Baked: Over 100,000 impressions |
| Exposing | |
| Plate setters | Luscher, Basysprint, Cron, EcooGraphix UV series CTCP machine |
| Exposure energy | 50 - 70 mj/cm² |
| Spectral sensitivity | 400 - 430 nm - UV Laser |
| Resolution | 2 - 99% LPI 200 |
| Photosensitive wave length | 405nm |
| Coating | Light Blue |
| Developing | |
| Processor | All the kind brands |
| Developer | Any CTCP plate developer or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing speed | 0.80 - 1.20 m/min |
| Storage And Handling | |
| Safelight | Handle under yellow safelight(UV free) |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity. |
3. Application

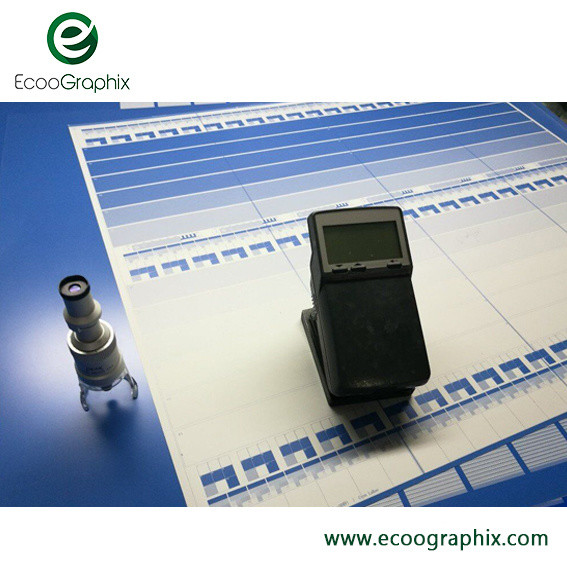

EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.

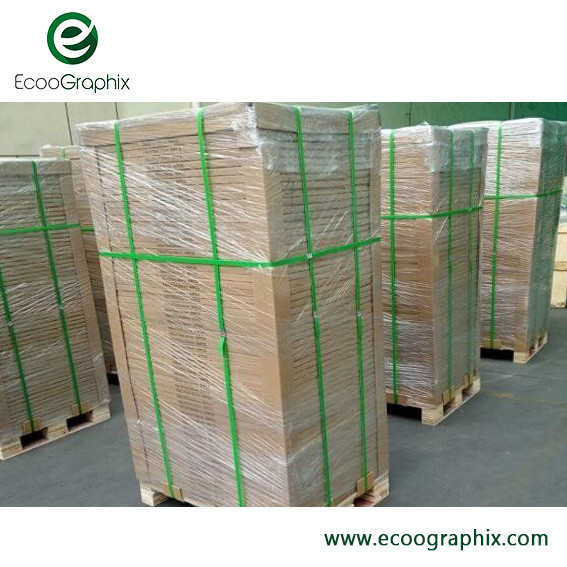

4. Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
5. Certificates
6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20000-25000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
